7.5kw Servo Motor 26 Roll Corrugated Sheet Rolling Machine Precision Customized

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Tile Type : Galvanized Sheet

Certification : CE, SGS

Condition : New

Customized : Customized

Usage : Roof

Transmission Method : Electric

Transmission Mode : 7.5kw Inch Chain Drive

Electronic Control System : PLC

Transport Package : Plastic Film & Steel Wire Fixed

Specification : 12000mmx1300mmx1400mm

Package Size : 1200.00cm * 130.00cm * 140.00cm

Package Gross Weight : 15000.000kg

Contact Now

Precision Customized Cold Hard Board Arc Machine
The cold hard plate arc machine is specially designed for arc forming of cold hard plates, primarily used in galvanized plate processing. To ensure consistent product forming, the feed width of galvanized plates is strictly controlled at 1000mm. This specification meets actual production needs, ensuring forming accuracy and improving equipment compatibility.
The equipment emphasizes stability, with the entire body constructed from 350H large steel that provides high structural strength and corrosion resistance. Its 26 sets of roll forming design reduce plate stress during forming, and the 70mm solid main shaft offers strong load-bearing capacity to handle operation torque and ensure stability.
Equipped with a 7.5kw servo main motor, the equipment delivers excellent power performance. Compared with traditional motors, it features higher power density and precise speed control, with adjustable production speed of 0-40 meters per minute, significantly improving production efficiency for different batch requirements.
For safe and efficient production, the equipment includes double hand-operated feeding to avoid potential safety hazards, an alarm-equipped servo electric shear to prevent equipment damage, and PLC frequency conversion control to enable intelligent and easy operation.
Technical Specifications
Model NO Corrugated Roofing Sheet Machine
Condition New
Usage Roof
Feeding Width 1000mm
Machine Frame 350H steel frame
Forming Speed 0-40M/min
Color Customized
Type of Driven Chain drive
Transmission Method Electric
Number of rolling mill sets 26 row molding
Spindle diameter Φ70mm (Solid shaft)
Customized Customized
Feeding method Double hand rocking feeding rack (with pressure roller)
Specification 12000mm x 1300mm x 1400mm
Origin Cangzhou, Hebei
Warranty 1 year
Material Specifications
Raw materials Galvanized steel
Machine frame 350H steel frame
Feed width 1000mm
Product Gallery

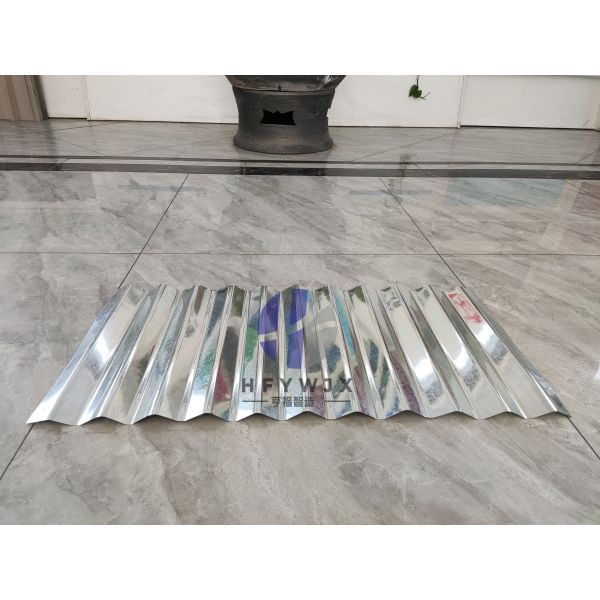

7.5kw Servo Motor 26 Roll Corrugated Sheet Rolling Machine Precision Customized 7.5kw Servo Motor 26 Roll Corrugated Sheet Rolling Machine Precision Customized 7.5kw Servo Motor 26 Roll Corrugated Sheet Rolling Machine Precision Customized 7.5kw Servo Motor 26 Roll Corrugated Sheet Rolling Machine Precision Customized 7.5kw Servo Motor 26 Roll Corrugated Sheet Rolling Machine Precision Customized
Frequently Asked Questions
How many people are required to operate the machine?
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
Can machines be customized according to our drawings?
Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Is the length of the discharge rack adjustable?
Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
