Safe Stable Long-Life CZ Steel Equipment
Product Overview
CZ steel equipment is a cold bending forming machine specifically designed for the steel structure industry. It is primarily used to process and produce C and Z section steel products, which are widely utilized for roof and wall beam support in factories, workshops, and various building structures, making it an essential component in steel construction.

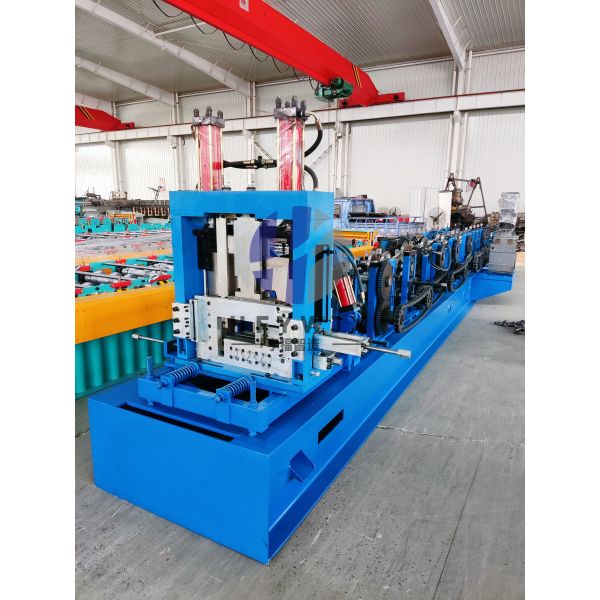

This integrated forming unit can produce C/Z section steel products in various specifications. The complete equipment includes passive loading, leveling, punching, main forming machine, hydraulic system, and computer-controlled cutting system. Custom configurations are available to meet specific production requirements and different application scenarios.
Operational Features

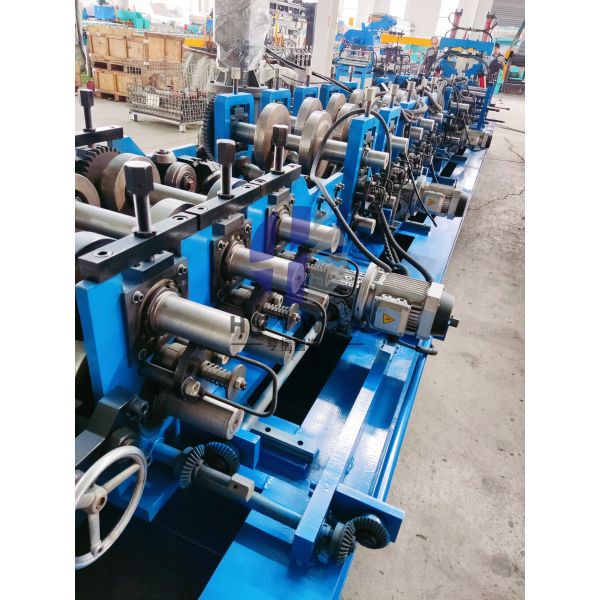

The equipment features excellent operational performance with 13 groups of C/Z interchangeable modules. Conversion between C and Z types is achieved through simple manual 180° rotation. Product size adjustments can be made quickly using electric buttons, enabling flexible production specification changes to accommodate diverse processing needs.
In practical production, this equipment offers significant advantages by reducing specification changeover time, minimizing material waste, and lowering production costs. It efficiently handles both large and small batch orders with simple operation, fast conversion, and compact footprint, delivering high-efficiency and stable production capacity.
Technical Specifications
| Parameter |
Specification |
| Model NO |
CZ steel equipment |
| Condition |
New |
| Color |
Blue or According to Customers' request |
| Cutter Type |
Hydraulic Cutting |
| Control System |
Controlled by PLC |
| Transmission Method |
Hydraulic Pressure |
| Automation |
Full-Automatic |
| Type of Driven |
Chain Transmission |
| Machine Frame |
500H steel and 450H rigid welding |
| Shaft Material |
45# |
| Specification |
9300mm*1400mm*2000mm |
| Type |
Cold Roll forming machine |
| Customized |
Customized |
| Warranty |
1 year |
| Place of Origin |
Hebei, China |
| Production Capacity |
400/Set |
| Parameter |
Specification |
| Material Compatibility |
Q195, Q235, Q345 |
| Forming Speed |
25/min (according to the number of holes) |

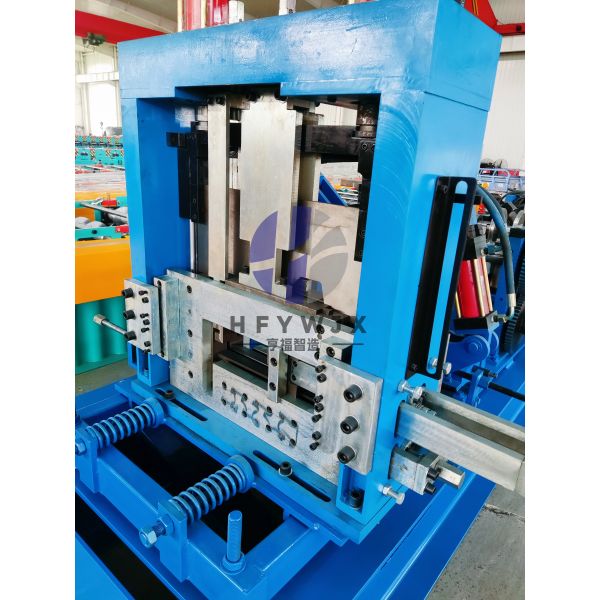

| Cutting Method |
Infinite shear system |
| Cutting Blade Material |
Cr12MoV |
| Roll Material |
GCr15 |
| Hydraulic Station |
Hydraulic station power 22KW |
Frequently Asked Questions
Can you provide semi-automatic or fully automatic receiving tables?
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
What are the available cutting methods?
Hydraulic Flying Shear
Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
What checks need to be performed before starting the machine?
Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
Can a single machine produce multiple types of profiles?
Standard models are typically designed to produce one specific profile type per machine. However, customizable models—such as those with interchangeable rollers, double-layer machines, or triple-layer machines—can be configured to enable a single machine to serve multiple purposes.
