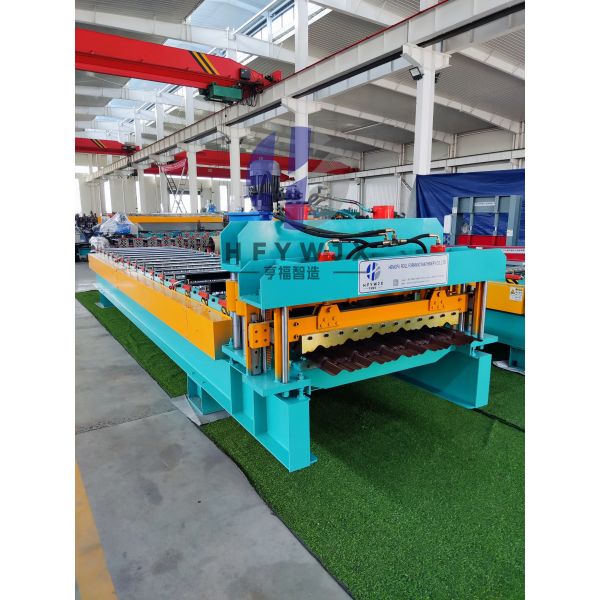

High Efficiency Automatic 980 Glazed Tile Roll Forming Machine
The Glazed Roll Forming Machine is an advanced industrial equipment designed for high-precision manufacturing of colored steel roofing tiles. Its performance and reliability are ensured by comprehensive detection and control components.
Precision Measurement & Control System
At the heart of the length measurement system lies a high-precision pulse encoder that provides real-time detection of colored steel tile length during production. This guarantees each produced sheet meets exact dimensional specifications. Mechanical limit switches serve as safety boundaries with up and down travel switches for pressing and cutting operations, preventing mechanical damage and ensuring accurate positioning.
Advanced Control & Operation
The operational logic is facilitated by the KDN-K306-24AR PLC from the high-performance KDN-K3 series, selected for its powerful processing capabilities and rich I/O configuration with 14 digital inputs and 10 relay outputs. For intuitive operation, the machine integrates a KDN text screen for parameter setting, real-time alarm prompts, help information, and production data display.
High-Speed Precision Performance
The KDN-K306-24AR PLC excels in high-digital pulse input performance with strong AB phase anti-interference ability, ensuring stable signal reading in electrically noisy environments. Through fixed value interrupt function, the system achieves micron-level accuracy in cutting and forming, ensuring flatness and consistency of final glazed tile products.
Parameter Setting & Operational Flexibility
The machine adopts a dual-category parameter setting system via the KDN text screen:
- Equipment Parameters: Fixed basic settings for stable operation including single pulse length, overshoot compensation, pressing distance, pressing time and cutting time
- User Parameters: Adjustable production indexes for different orders including number of sheets, target length, first and last section dimension, pitch and number of sections
Technical Specifications
| Model NO | 980 |
|---|
| Condition | New |
|---|
| Usage | Roof |
|---|
| Electric control system | PLC |
|---|
| Machine frame | 400H steel frame |
|---|
| Forming Speed | 4-6M/min |
|---|
| Color | Customized |
|---|
| Type of Driven | Chain drive |
|---|
| Transmission Method | Hydraulic pressure |
|---|
| Number of rolling mill sets | 16 row molding |
|---|
| Spindle diameter | Φ80mm (Solid shaft) |
|---|
| Customized | Customized |
|---|
| Feeding method | Double hand rocking feeding rack |
|---|
| Origin | Cangzhou, Hebei |
|---|
| Warranty | 1 year |
|---|
| Raw materials | Color steel plate |
|---|
Product Images
Manufacturer Profile
Hebei Hengfu Roll Forming Machine Co., Ltd. is a professional manufacturer of cold-bending forming equipment and automated production lines. With advanced production equipment and product development capabilities, our products feature high rate, high precision, high flexibility, and low processing loss.
Main Products: Color steel plate equipment, glazed tile equipment, floor decking equipment, CIZ steel forming equipment, composite sandwich panel assembly line equipment, car compartment panels, dust removal anode plates and other equipment.
Global Reach: Products exported to over 50 countries including Africa, India, United Kingdom, Australia, and Kazakhstan.
