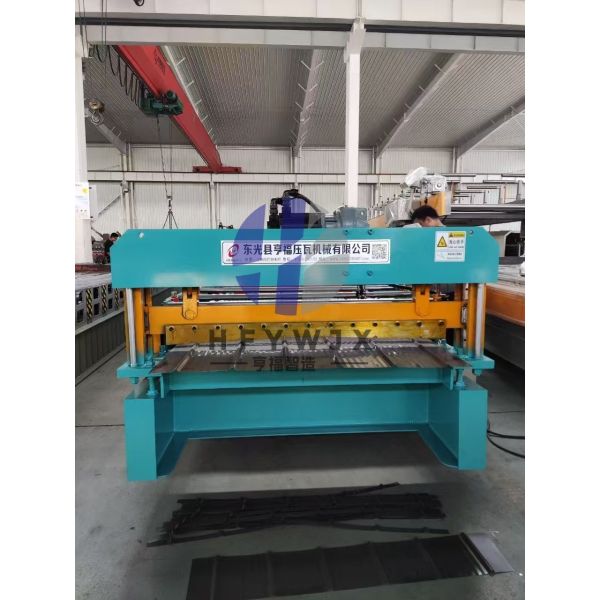

Automatic 890 IBR Trapezoidal Roof Sheet Roll Forming Machine with Linear Guide Rail Cutting System and 16 Row Molding PLC Control

The entire machine frame is constructed from high-strength I-beams and premium steel sections, ensuring a robust and durable structure. The 890 type roll forming machine is typically welded with 250# I-beams, providing exceptional load-bearing capacity and long-term stability. This heavy-duty frame effectively supports all machine components, minimizes vibration during operation, and guarantees smooth and precise forming performance even under continuous production conditions.

The machine is equipped with a high-performance hydraulic system, including both profiling and shearing hydraulic cylinders.

• The profiling hydraulic cylinder precisely drives the forming molds to move up and down, ensuring accurate shaping of the metal sheets.
• The shearing hydraulic cylinder controls the cutting blade to deliver clean, fast, and accurate cuts according to preset lengths.

This dual-cylinder design ensures high efficiency, stable operation, and consistent product quality, making it ideal for large-scale production.

The PLC control system serves as the core of the entire machine, enabling fully automatic operation. By integrating advanced programming, the system can receive and process signals from various sensors, including pulse encoders and limit switches. It precisely controls motors, hydraulic solenoid valves, and other key components according to preset parameters.

This ensures accurate synchronization of forming, feeding, and cutting processes, significantly improving production efficiency while reducing manual intervention and operational errors.
