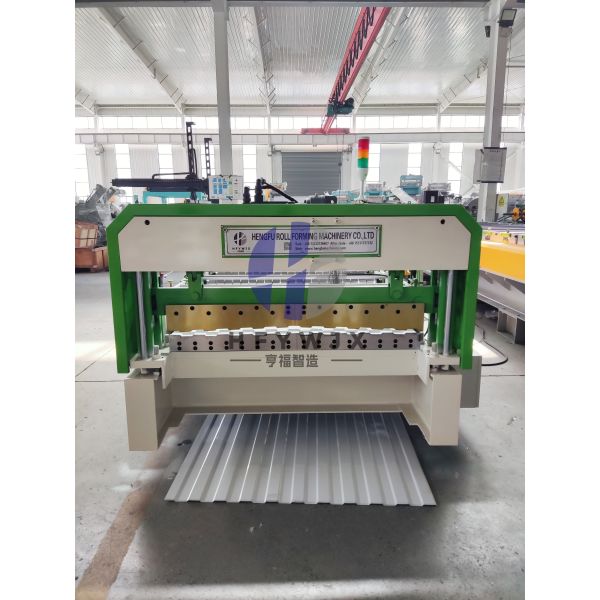

C8 Galvanized Steel Sheet Roll Forming Machine for Metal Roofing Panels
The C8 corrugating machine manufactured by Dongguang Hengfu Roll Forming Machine represents a new generation of high-efficiency roll forming equipment, specifically engineered to meet the growing demands of modern construction industries. Designed for the production of C8 profile corrugated metal sheets, this machine integrates advanced automation technology with precision engineering to deliver outstanding performance, consistency, and durability.
From coil decoiling, material feeding, and roll forming to hydraulic cutting and automatic stacking, the entire production process is seamlessly connected, ensuring continuous and stable operation with minimal manual intervention.
Key Features
- Patented linear guide rail cutting system for enhanced precision and stability
- Reduced vibration and smoother motion compared to conventional systems
- Extended lifespan of critical components
- High-speed production capabilities while maintaining quality standards
- CNC-machined forming rollers with advanced heat treatment
- Excellent wear resistance and long-term accuracy
Technical Specifications
| Category |
Item |
Specification |
| Material |
Raw Material |
PPGI or Galvanized steel |
| Thickness |
0.3-0.8 mm |
| Material Width |
1 m (can be customized) |
| Product |
Coils Weight |
5T |
| Shaft OD |
70mm |
| Machine |
Rolled Material |
45 Steel |
| Machine Frame |
350H Steel Frame |
| Machine Size |
Approx. 11500mm x 1800mm x 1600mm |
| Machine Weight |
Approx. 6.5 ton |
| Machine Color |
As customer request |
| Power |
Working Speed |
0-35 meter/min |
| Motor |
China brand |
| Main Power |
7.5 KW Servo motor |
| Voltage |
380v 50hz 3PH (or customized) |
| Control System |
Labour |
1 person |
| Language |
Chinese, English or customer requirements |
Frequently Asked Questions
Q1: Are you a trading company or a factory?
A1: We are a manufacturer located in Cangzhou, Hebei. We have our own product design team. Welcome to visit our factory and inspect the quality of our machines on-site.
Q2: Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3: Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4: What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine. If the broken parts can't be repaired, we can send new parts to replace the broken parts freely, but you need to pay the express cost. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply technical support for the entire life of the equipment.
Q5: Can you finish the machine during the delivery time?
A5: We will finish the machine in time according to determined lead time.
