Adjustable Photovoltaic Bracket Roll Forming Machine With Industrial Computer PLC Control For Solar Mount

Name: Adjustable Photovoltaic Bracket Roll Forming Machine With Industrial Computer PLC Control For Solar Mount
Brand: HENGFU
Price: 1 USD

Cheap Adjustable Photovoltaic Bracket Roll Forming Machine With Industrial Computer PLC Control For Solar Mount for sale

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Application : Industrial

Type : Roof Bracket

HS Code : 8455221000

Specification : 2255mm*1250mm*1400mm

Material : Steel

Certification : SGS

Accuracy : High Accuracy

Economy : High Efficiency

Production Capacity : 500pieces/Years

Flexibility : Adjustable

Contact Now

Photovoltaic Bracket Roll Forming Machine

Product Overview

The Automatic Solar Mounting System Photovoltaic Bracket Forming Machine is an advanced manufacturing solution tailored for the efficient production of solar mounting structures. It processes metal coils into high-strength brackets with excellent consistency, helping ensure that photovoltaic systems remain stable and secure in various installation conditions.

This machine enhances production efficiency while maintaining strict quality control. The integrated forming and punching system allows for continuous operation, reducing production interruptions and improving overall workflow, enabling manufacturers to increase output while controlling production costs.

Designed for reliable performance under demanding conditions, the machine features a well-engineered structure and carefully configured roll forming stations that contribute to smooth operation and reduced mechanical wear, extending service life and minimizing downtime.

Technical Specifications

Material	Galvanized sheet 2.0mm-2.5mm
Machine Frame	Box welding frame
Wall Panel	T=55mm archway style
Number of Roller Groups	24 groups of main rollers
Roll Material	CR12 precision turning and hard chrome plating
Spindle Material	45# high quality steel tempered
Spindle Diameter	Φ80mm solid shaft
Transmission Mode	Gearbox transmission
Production Speed	8m-50m/minute
Hydraulic Shearing Power	11kw large valve blade pump station
Cutting	Hydraulic twisting and shearing without stopping the machine
Cutting Mold	Cut with two blades, Cr12 quenching treatment, HRC58-60
Electronic Control System	Industrial computer PLC frequency conversion control, cutting length error ≤ 2mm 55KW variable frequency touch screen vertical electric control box with remote control
Overall Dimensions	Length 2250, Width 1250, Height 1400

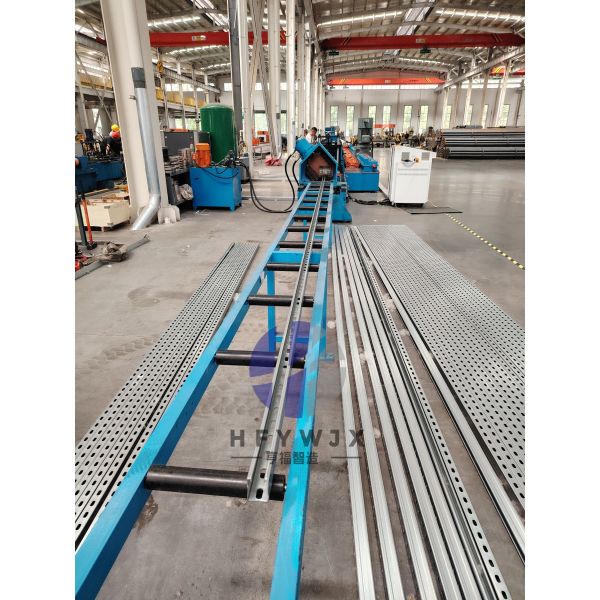

Product Images

Adjustable Photovoltaic Bracket Roll Forming Machine With Industrial Computer PLC Control For Solar Mount

Frequently Asked Questions

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

How long is the warranty period?

The entire machine comes with a 12-month warranty, excluding wear parts.

Can a single machine produce multiple types of profiles?

Standard models are typically designed to produce one specific profile type per machine. However, customizable models—such as those with interchangeable rollers, double-layer machines, or triple-layer machines—can be configured to enable a single machine to serve multiple purposes.

Does the machine require a foundation?

It simply requires a level concrete floor; no complex foundation is necessary.

Does the machine require disassembly for transport?

The core structure remains intact; only the auxiliary components are removed to ensure that precision is maintained.
