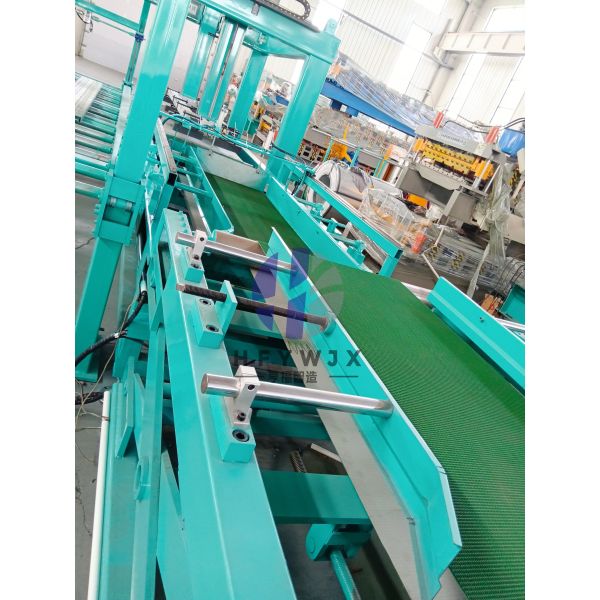

26 Stations Corrugated Sheet Roll Forming Machine PLC Intelligent Control

  • 1
  • 2
  • 3

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Model NO. : Cold hard board arc machine

Tile Type : Galvanized Sheet

Condition : New

Transmission Method : Electric

Transmission Mode : 7.5kw Inch Chain Drive

Production Capacity : 400sets/ Year

Contact Now

Corrugated Sheet Roll Forming Machine

The Metal Galvanized Corrugated Roofing Sheet Arc Panel Roll Forming Machine is a specialized solution designed for producing both standard corrugated sheets and curved (arc) roofing panels. It is ideal for applications such as industrial buildings, warehouses, and large-span steel structures where curved roofing designs are required.

Processing galvanized steel with a feeding width of 1000mm, the machine ensures consistent shaping and high-quality surface finish for durable roofing panels.

Robust Construction & Precision Engineering
  • Built with robust 350H steel frame for exceptional rigidity
  • 26 forming stations for superior forming accuracy
  • Φ70mm solid shaft and precision-machined rollers made from high-grade 45# steel
  • Minimizes deformation during production and guarantees consistent arc profiles
High-Performance Operation
  • Production speed up to 40 meters per minute
  • Chain-driven transmission system with 7.5kW motor
  • PLC intelligent control system with frequency conversion
  • Advanced servo electric shearing with double linear guide rails
  • Clean, burr-free cutting with precise length accuracy
Manufacturer: Dongguang Hengfu Roll Forming Machine Co., Ltd.
Technical Specifications
Model NO Corrugated Roofing Sheet Machine
Condition New
Usage Roof
Feeding Width 1000mm
Machine Frame 350H steel frame
Forming Speed 0-40M/min
Type of Driven Chain drive
Number of rolling mill sets 26 row molding
Spindle diameter Φ70mm (Solid shaft)
Feeding method Double hand rocking feeding rack (with pressure roller)
Specification 12000mmx1300mmx1400mm
Origin Cangzhou, Hebei
Warranty 1 year
Product Images
26 Stations Corrugated Sheet Roll Forming Machine PLC Intelligent Control 26 Stations Corrugated Sheet Roll Forming Machine PLC Intelligent Control 26 Stations Corrugated Sheet Roll Forming Machine PLC Intelligent Control 26 Stations Corrugated Sheet Roll Forming Machine PLC Intelligent Control
Frequently Asked Questions
Do you have customers for your equipment in our country?
Yes, we have established customers in the Middle East, North Africa, and various European countries.
What is the difference between your machines and cheaper alternatives?
  • The machine frame is thicker and will not deform even after prolonged use
  • The rollers feature high precision, ensuring a standard and consistent panel profile
  • The cutting system is stable, guaranteeing precise length accuracy
  • It boasts a low failure rate and low maintenance costs
  • It offers a significantly longer service life
What are the available cutting methods?
Hydraulic Flying Shear or Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
Can it be integrated into a complete color steel production line?
Yes, it can—forming a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
